Tianchen Materials
1 / 3
| TEST ITEM | UNIT | ASTM TEST | TYPICAL VALUES | ||||
| GAUGE | 12um | 15um | 19um | 25um | 30um | ||
| TENSILE | |||||||
| Tensile Strength (MD) | N/mm² | D882 | 130 | 125 | 120 | 110 | 105 |
| Tensile Strength (TD) | 125 | 120 | 115 | 105 | 100 | ||
| Elongation (MD) | % | 110 | 110 | 115 | 120 | 120 | |
| Elongation (TD) | 105 | 105 | 110 | 115 | 115 | ||
| TEAR | |||||||
| MD at 400gm | gf | D1922 | 10.0 | 13.5 | 16.5 | 23.0 | 27.5 |
| TD at 400gm | 9.5 | 12.5 | 16.0 | 22.5 | 26.5 | ||
| SEAL STRENGTH | |||||||
| MD \ Hot Wire Seal | N/mm | F88 | 0.75 | 0.91 | 1.08 | 1.25 | 1.45 |
| TD \ Hot Wire Seal | 0.78 | 0.95 | 1.10 | 1.30 | 1.55 | ||
| COF (Film To Film) | |||||||
| Static Dynamic | D1894 | 0.23 | 0.21 | 0.19 | 0.22 | 0.25 | |
| 0.23 | 0.21 | 0.19 | 0.22 | 0.25 | |||
| OPTICS | |||||||
| Haze | % | D1003 | 2.1 | 2.5 | 3.1 | 3.6 | 4.5 |
| Clarity | D1746 | 98.5 | 98.0 | 97.0 | 95.0 | 92.0 | |
| Gloss @ 45° | D2457 | 88.0 | 87.0 | 84.0 | 82.0 | 81.0 | |
| SHRINKAGE PROPERTIES | TD | MD | |||||
| Free Shrinkage | 100°C | % | D2732 | 23 | 32 | ||
| 110°C | 37 | 45 | |||||
| 120°C | 59 | 64 | |||||
| 130°C | 67 | 68 | |||||
| Shrink Tension | 100°C | MPa | D2838 | 1.85 | 2.65 | ||
| 110°C | 2.65 | 3.50 | |||||
| 120°C | 2.85 | 3.65 | |||||
| 130°C | 2.65 | 3.20 | |||||
The above evaluation data are for reference only.

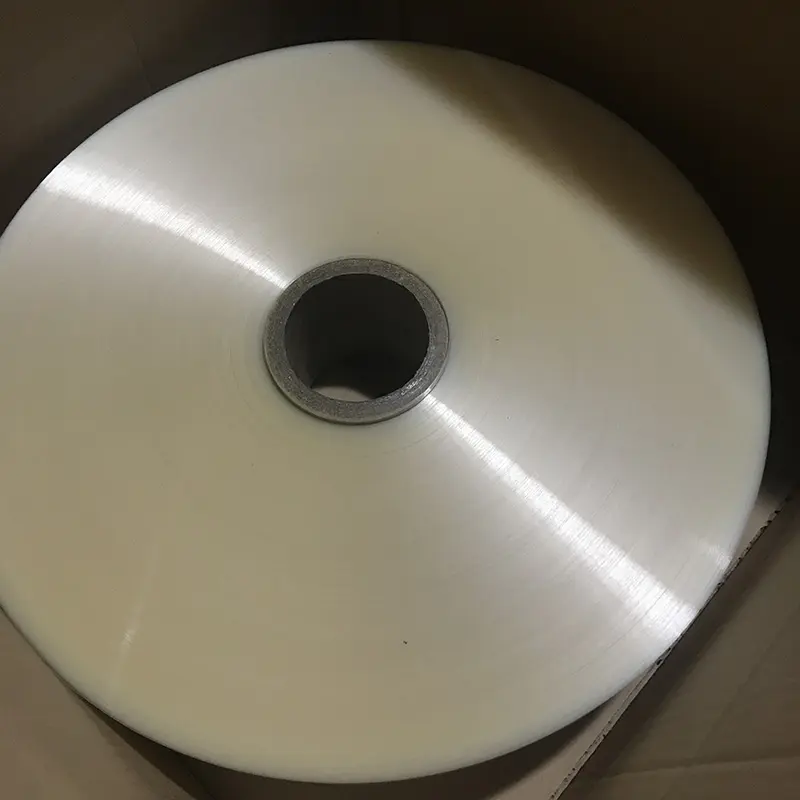

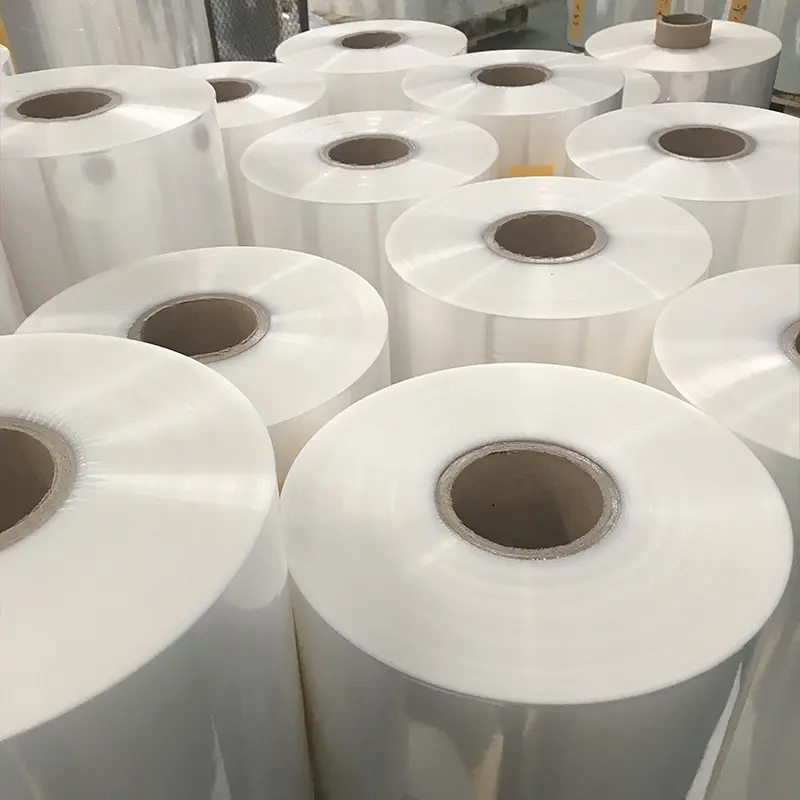

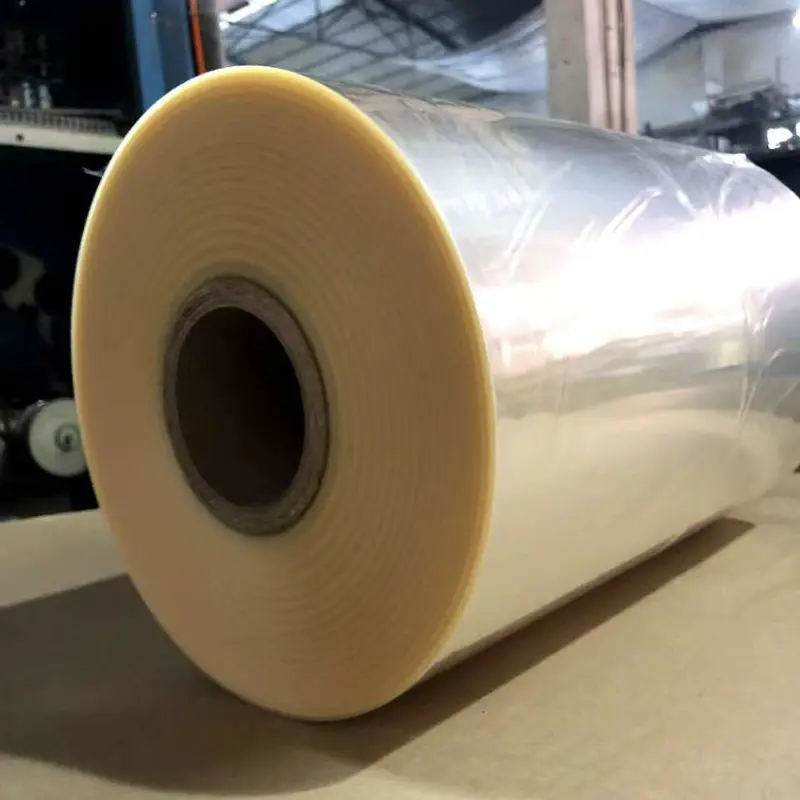

Standard POF is especially suitable for use as a folding film, because of its good opening; of course, it can also be used for monolithic film. The adaptability to the packaging machine is very good — it can adapt to most automatic and semi-automatic packaging machinery requirements, making it a very widely used and affordable product. Conventional thickness: 12um, 15um, 19um, 25um, 30um.
POF is mainly used for packaging regular and irregular shape products. Because of its non-toxic environmental protection, high transparency, high shrinkage, good heat sealing performance, high gloss, strong toughness, tear resistance, heat shrinkage uniformity, and suitability for automatic high-speed packaging, it is widely used in automotive supplies, plastic products, stationery, books, electronics, circuit boards, MP3, VCD, crafts, frames, wood products, toys, pesticides, daily necessities, food, cosmetics, canned beverages, dairy products, medicine, tape and video products.
Suitable for a wide range of packaging applications. Economical solution that reduces material and transportation costs.
Excellent shrink properties ensure a tight and secure fit around products. Superior protection against physical damage, moisture, and contamination.
High transparency and gloss enhance the visual appeal of packaged goods. Attractive appearance that boosts product visibility on store shelves.
